適用于船舶停港口時接入岸上電源并向船          It is applicable to the power connection line connected

舶供電的電源連接線。                                          to the shore power supply and supplying power to the ship

 取得CCS工廠（型式）認可證書                                                         when the ship stops at the port.

IEC60092-350

IEC60092-350

IEC60092-353

IEC60092-353

IEC PAS 80005-3

IEC PAS 80005-3

T/CAS 429

T/CAS 429

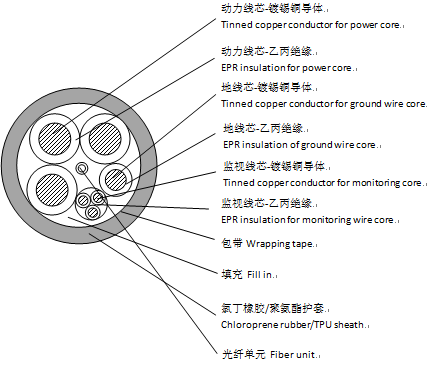

ADEF(CADEFR)/DA/SA

乙丙絕緣氯丁橡膠護套船岸連接電纜，DA/SA型

EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

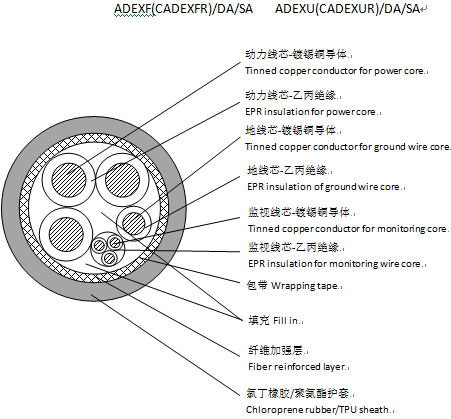

ADEXF(CADEXFR)/DA/SA

乙丙絕緣纖維編織加強層氯丁橡膠護套船岸連接電纜，DA/SA型

EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

ADEU(CADEUR)/DA/SA

乙丙絕緣聚氨脂護套船岸連接電纜，DA/SA型

EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA

ADEXU(CADEXUR)/DA/SA

乙丙絕緣纖維編織加強層聚氨脂護套船岸連接電纜，DA/SA型

EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA

具有耐阻燃、日光老化、耐磨、抗撕、耐鹽霧、耐循環彎曲（滿足IEC80005.1規定的5000次卷繞試驗）及優良的電性能（耐壓測試3.5KV/5min）。

flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min).

產品使用特性

Product features

額定電壓 U₀/U 為0.6/1KV  ; 最低工作溫度（靜態）為-40℃；導體允許長期最高工作溫度為90℃；最大短路時間為5S時導體最高工作溫度不超過250℃；電纜最小彎曲半徑（靜態）為電纜外徑D的6倍。

Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40℃; The maximum allowable long-term operating temperature of the conductor is 90℃; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250℃; The minimum bending radius (static) of the cable is 6 times of the cable diameter D.
